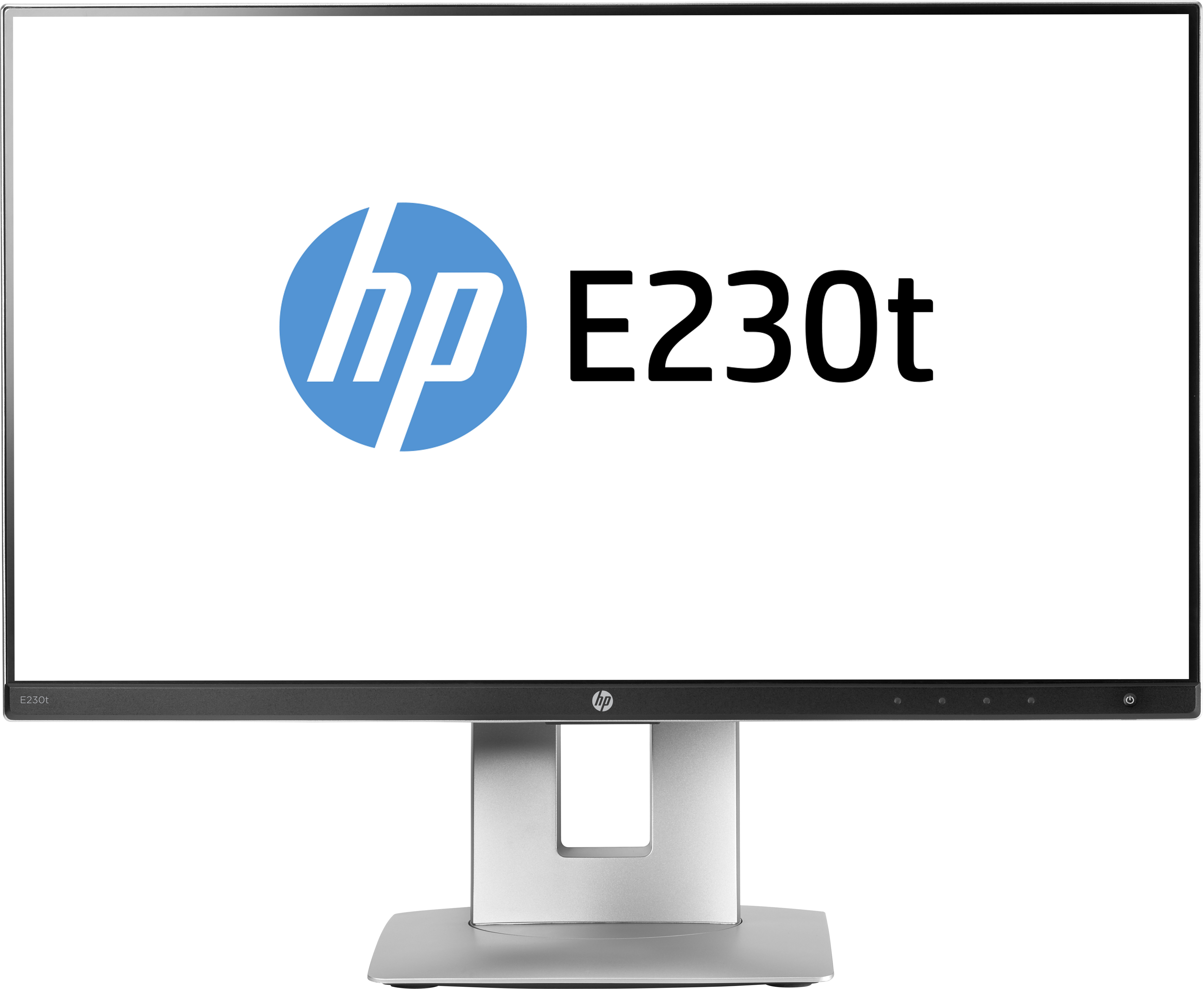

HP EliteDisplay E230t review

HP EliteDisplay E230t. Display diagonal: 58.4 cm (23"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black, Silver

Give your productivity a hand with the ultrathin HP Elite E230t Monitor, a 23-inch diagonal Full HD IPS touch display that’s Windows 10 certified with up to 10 simultaneous touch points for every way you touch and comfort adjustability for every way you work.

The next evolution of touch


Get a superb hands-on interactive touch experience minus the traditional distractions of glare and messy fingerprints with integrated in-cell touch technology that also enables a sleek, slim display.

Simply beautiful, nearly borderless


Maximize you visual real estate and see even more of your work on a wide-angle display that has a three-sided micro edge screen, which makes it easy to tile in multi-monitor arrangements and keep clean.

Create an efficient, smart setup


Attach your HP Desktop Mini, HP Chromebox or select HP Thin Client directly behind the display1 for an integrated, affordable workspace that’s perfect for small spaces. Or, use the integrated VESA mount to place the display on a wall or stand.2

Optimized ergonomics


Find just the right position to be comfortable all day with adjustable height up to 150 mm, tilt, and swivel, plus pivot rotation for portrait mode viewing. The included VESA pattern supports wall and arm mounting in tight spaces.2,3

HP EliteDisplay E230t specs

Other Features

Connection to PC: True
Display viewable area (HxV): 509.184 x 286.416 mm
Number of simultaneous touchpoints: 10
Placement supported: Horizontal
Touchscreen: True
Touchscreen type: Table
Dimensions (W x D x H) with stand: 520.8 x 189 x 486.6 mm

Weight & Dimensions

Height (without stand): 31.2 cm
Depth (without stand): 5.23 cm
Width (without stand): 52.1 cm
Weight (with stand): 4.9 kg
Height (with stand): 486.6 mm
Depth (with stand): 189 mm
Width (with stand): 520.8 mm

Packaging Data

Quick start guide: yes
Cables included: AC, USB, VGA

Power

Power consumption (max): 57 W
Power consumption (standby): 0.5 W
Power consumption (typical): 29 W

Ergonomics

LED indicators: Y
Plug and Play: yes
Number of OSD languages: 10
Tilt angle range: -5 - 25°
Swivel angle range: 0 - 180°
Pivot: True
Height adjustment: 15 cm
Wall mountable: yes
VESA mounting: yes

Performance

OmniTapps Multitouch compatibility: no
AMD FreeSync: False
NVIDIA G-SYNC: no

Sustainability

Sustainability certificates: ENERGY STAR

Design

Country of origin: China
Refurbished: yes
Product colour: Black, Silver

Multimedia

Built-in microphone: no
Built-in camera: no

Ports & Interfaces

HDCP: True
DisplayPorts quantity: 1
HDMI ports quantity: 1
HDMI: True
VGA (D-Sub) ports quantity: 1
USB Type-A downstream ports quantity: 2
Number of upstream ports: 1
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub: yes

Display

Colour gamut: 72%
Full HD: True
Glossy display: no
Display diagonal (metric): 58.42 cm
Pixel pitch: 0.2652 x 0.2652 mm
3D: False
Display number of colours: 16.78 million colours
Viewing angle, vertical: 178°
Viewing angle, horizontal: 178°
Contrast ratio (dynamic): 500000:1
Contrast ratio (typical): 1000:1
Aspect ratio: 16:9
Screen shape: Flat
Backlight type: W-LED
Display technology: LED
HD type: Full HD
Response time: 5 ms
LED backlight: yes
Touch technology: Multi-touch
Touchscreen technology: Capacitive
Panel type: IPS
Display resolution: 1920 x 1080 pixels
Display brightness: 250 cd/m²
Display diagonal: 58.4 cm (23")
