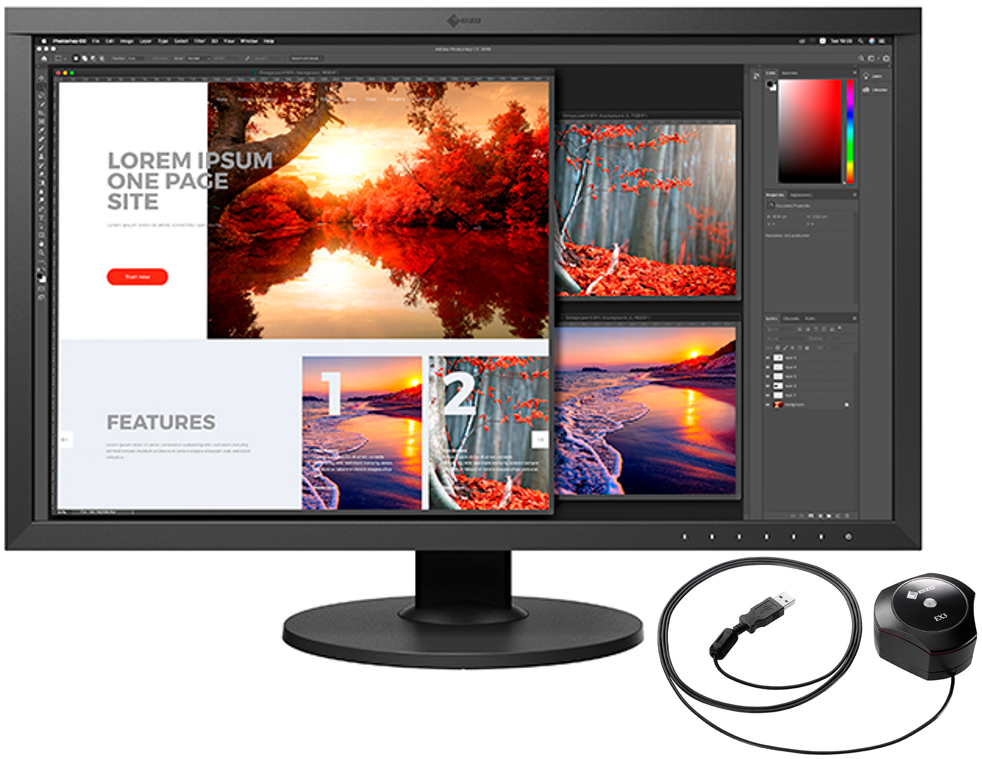

EIZO ColorEdge CS2740-Photo review

EIZO ColorEdge CS2740-Photo. Display diagonal: 68.6 cm (27"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LED, Response time: 10 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

With 4K UHD (3840 x 2160), a spacious 27-inch screen, and USB Type-C connectivity, this monitor facilitates a detail-oriented, comfortable, and streamlined workflow ideal for any creative field. Whether it be photography, video editing, or design, this monitor gives you everything you need to keep imagination flowing.

  • Simple and Precise Color Management
  • Color Accuracy
  • Stable Image Display
  • User-Friendly Design
  • Comfort and Ease-of-Use
  • Commitment to Quality
  • Use by Professional Creatives Worldwide

EIZO ColorEdge CS2740-Photo specs

Other Features

Energy efficiency class (old): B

Weight & Dimensions

Weight (without stand): 6.7 kg
Height (without stand): 37.8 cm
Depth (without stand): 7.5 cm
Width (without stand): 63.8 cm
Weight (with stand): 10.3 kg
Height (with stand): 559 mm
Depth (with stand): 265 mm
Width (with stand): 638 mm

Operational Conditions

Operating relative humidity (H-H): 20 - 80%
Operating temperature (T-T): 0 - 35 °C

Packaging Data

Cables included: AC, DisplayPort, USB Type-C
Stand included: yes

Power

Annual energy consumption: 62 kWh
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (standby): 1 W
Power consumption (typical): 36 W

Ergonomics

Number of OSD languages: 8
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese
On Screen Display (OSD): True
Tilt angle range: -5 - 35°
Tiltable: True
Swivel angle range: 0 - 344°
Pivot: True
Pivot angle: 0 - 90°
Swivelling: True
Height adjustment: 15.5 cm
Height adjustment: yes
Panel mounting interface: 100 x 100 mm
VESA mounting: yes

Performance

Flicker-free technology: yes

Sustainability

Sustainability certificates: RoHS

Design

Certification: CB, CE, TÃœV / GS, TÃœV / Ergonomie, TÃœV / Color Accuracy (Quick Stability), FograCert Softproofing System (class A, cTÃœVus, TÃœV / S, EAC, PSE, FCC-B, ICES-003-B (CAN) , RCM, VCCI-B, CCC, RoHS, China RoHS, WEEE
Product colour: Black
Market positioning: Graphics design

Ports & Interfaces

HDCP: True
DisplayPort version: 1.3
DisplayPorts quantity: 1
HDMI version: 1.4
HDMI: True
DVI port: no
USB Power Delivery up to: 60 W
USB Type-A downstream ports quantity: 4
USB Type-C DisplayPort Alternate Mode: True
Number of upstream ports: 2
USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub: yes

Display

Digital vertical frequency: 23 - 61 Hz
Digital horizontal frequency: 15 - 135 kHz
Viewable size, vertical: 33.5 cm
Viewable size, horizontal: 59.6 cm
Pixel density: 164 ppi
Pixel pitch: 0.155 x 0.155 mm
Display number of colours: 1.073 billion colours
Viewing angle, vertical: 178°
Viewing angle, horizontal: 178°
Maximum refresh rate: 60 Hz
Contrast ratio (typical): 1000:1
Supported video modes: 480i,576p,720p,1080i,1080p
Supported graphics resolutions: 640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160
Screen shape: Flat
Backlight type: LED
Display technology: LED
HD type: 4K Ultra HD
Response time: 10 ms
Display brightness (typical): 350 cd/m²
Panel type: IPS
Native aspect ratio: 16:9
Display resolution: 3840 x 2160 pixels
Display diagonal: 68.6 cm (27")
